Hydrogen Supply

General Notes

The Hydrogen Supply sector is one of three sectors in the Energy Policy Simulator (EPS) that produce an energy carrier used by other sectors. The other two energy carrier supply sectors are Electricity and District Heating. All three energy carrier supply sectors produce a quantity of energy (hydrogen, electricity, or district heat) determined by the demand for these energy carriers in all of the sectors of the EPS, with the largest demand coming from the Transportation, Buildings, and Industry sectors.

(Secondary petroleum products can be produced in the Industry sector and used in various sectors, but this production is not wholly based on domestic demand, given international markets and fuel imports/exports, so the term "energy carriers" in the EPS only refers to electricity, district heat, and hydrogen.)

All calculations for hydrogen supply (Policy case, BAU case, and cash flow) are handled on one sheet in the Vensim model. As is the case for other sectors, the documentation here only discusses the policy case and cash flow, not the BAU case.

Hydrogen Production Pathways

Hydrogen, H₂, is a colorless, flammable gas that produces water vapor (H₂O) when it burns. As hydrogen combustion doesn't have any direct carbon dioxide (CO₂) emissions, the contribution of hydrogen to global warming depends on the manner in which the hydrogen was produced.

Today, according to the International Energy Agency, roughly 75% of the world's hydrogen is produced from natural gas, and 23% is produced from coal (with most coal-based hydrogen production occurring in China). Most of the remaining 2% is produced as a byproduct of chlor-alkali electrolysis in the production of chlorine and caustic soda. Less than 0.1% of global hydrogen comes from water electrolysis -- that is, using electricity to split water into H₂ and O₂ gases. Producing hydrogen using zero-carbon electricity, or another zero-carbon pathway, is necessary for hydrogen to be a key technology that supports net zero emissions economy-wide.

The EPS has been designed to model up to five different hydrogen production pathways, and to allow these pathways to be customizable, to support different novel hydrogen technologies. By default, the five modeled pathways are:

• electrolysis (yellow H₂)
• natural gas reforming (grey H₂)
• coal gasification (black H₂)
• biomass gasification
• hydrocarbon partial oxidation (another form of grey H₂)

(Partial Oxidation is a less widely used process for hydrogen production in which hydrocarbons like natural gas, heavy fuel oils, or residue streams in refineries are converted into H₂ and CO. Some of the fuel is fully combusted to CO₂)

Additionally, two alternative pathways for decarbonization of the hydrogen sector are available:

• electrolysis with guaranteed clean electricity (green H₂)
• natural gas reforming with CCS (blue H₂)

Other pathways such as Thermochemical water splitting (pink H₂) can be substituted for one or more of these five pathways by altering the input data in these variables:

• hydgn/HPEbP Hydrogen Production Efficiency by Pathway
• hydgn/HPtFM Hydrogen Pathway to Fuel Mappings
• hydgn/HPEC Hydrogen Production Equipment CapEx
• hydgn/HPEC Hydrogen Production Equipment OpEx

This allows a model user to customize which types of fuels supply the energy for the hydrogen production process, as well as the efficiency of the process. For more details, see the page on Remapping Subscript Elements.

Note that the hydrogen supply sector represents dedicated hydrogen production, not hydrogen produced as a byproduct of industrial operations aiming at producing a different product, so we don't include byproduct hydrogen from the production of chlorine and caustic soda in this sector of the model.

Also note that the "electrolysis" pathway draws its electricity from the grid - it does not assume dedicated renewable energy or other facilities are supplying the hydrogen producer. Therefore, decarbonizing the modeled region's electricity supply using policy levers that affect the Electricity Sector is necessary to achieve zero-carbon hydrogen production via the "electrolysis" pathway.

Hydrogen Production Energy Use and Emissions

Six EPS sectors can demand hydrogen as a fuel: transportation, buildings, industry, electricity, district heat, and geoengineering. (This only includes hydrogen purchased from hydrogen suppliers, not hydrogen produced and consumed within the same industrial facility.) Hydrogen demand from these sectors is summed. Then, the hydrogen to be produced is apportioned between the various production pathways based on shares taken in as time-series input data (allowing for a gradual shift between pathways in the BAU case).

In the policy case, the Hydrogen Production Pathway Shifting policy allows the user to specify a shift from the BAU set of production pathways to any other apportionment of production amongst the various pathways. The recipient (non-BAU) pathways are specified in input variable hydgn/BRHPF and the extent to which the shift occurs is controlled by the policy lever and associated policy implementation schedule. A boolean lever also allows the user to shift the recipient hydrogen pathways in a policy scenario.

To calculate fuel use, we multiply the quantity of hydrogen produced via each pathway by an efficiency that indicates how much fuel or electricity is used per unit of hydrogen produced. We work with efficiencies rather than a strict chemical relationship between the moledules (e.g. one molecule CO₂ produced per CH₄ converted to hydrogen) to capture the energy requirements of the transformation, which is an endothermic reaction.

For green hydrogen production, which requires dedicated, new renewables to meet the energy needs of electrolyzers, we cannot simply feed greater grid electricity demand into the electricity sector. Instead, we separately calculate the demand for these renewables and use a stock tracking calculation on the Electricity Sector page to determine the capacity of each renewable source deployed to meet demand.

Adding the fuel use for green hydrogen plus any fuel used for CCS on blue hydrogen projects yields the total fuel use of the hydrogen sector.

Finally, we multiply by pollutant emissions intensities to obtain the total, direct pollutant emissions from hydrogen production, and we also convert to units of CO₂e using global warming potentials (GWP). We use the same pollutant emissions intensities (mass of pollutant per energy unit of a given type of fuel burned) from the industry sector, as hydrogen production uses industrial equipment. Additionally, we total the electricity use by the hydrogen supply sector, which is fed into the total electricity use on the Cross-Sector Totals sheet.

Demand-Responsive Electricity Capacity for Electrolyzers

It has been proposed that hydrogen production from electrolysis can help balance (provide flexibility to) the electricity grid, by running when electricity demand is low and pausing when electricity demand is high. The EPS simulates this by taking the "excess" hydrogen production capacity - e.g. how much more hydrogen-making equipment exists than the amount of equipment that would be required to produce a particular quantity of hydrogen per year, if the equipment were run constantly at full design capacity, 24 hours per day, 365 days per year (in hydgn/HPPECbP). On its own, core (non-excess) capacity cannot contribute to providing flexibility, because it must run in order to generate enough hydrogen to meet the annual hydrogen demand. Excess capacity can kick in at times of low electricity demand to reduce the need to run some of the core capacity during high-electricity-demand times. Therefore, the amount of excess capacity is the amount by which the peak electricity demand can be reduced while maintaining the same annual hydrogen production rate. We convert from excess hydrogen production capacity to electricity capacity using data indicating the electricity capacity that would be required to produce a particular quantity of hydrogen per year (in hydgn/EHPpUC). The resulting "Demand Responsive Capacity for Electrolyzers" provides flexibility points to the Electricity Sector.

Capital Expenditures

To determine the cost of capital equipment for hydrogen production, we first calculate the year-over-year change in annual hydrogen output from each production pathway.

We multiply the increase in hydrogen demand by the percent of excess capacity required (which provides grid flexibility, as noted above) and by the cost per unit of equipment (measured in currency units per unit annual hydrogen production capacity). This provides the amount spent that year to buy new equipment to meet the new, incremental demand for hydrogen in that year.

Finally, we take the difference between the BAU and Policy case versions of this variable to find the policy-driven change in capital equipment expenditures.

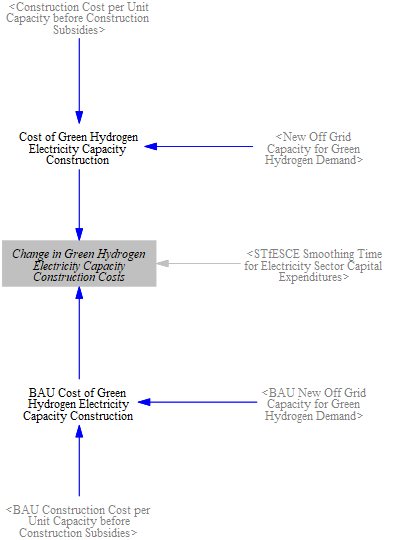

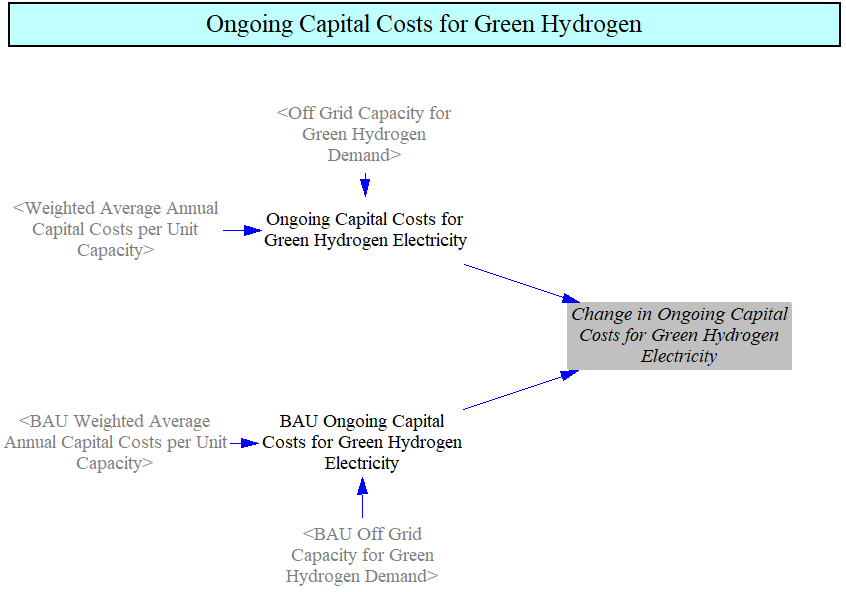

Separately, we track the construction costs of green hydrogen electricity capacity. We use the construction cost per unit capacity calculated in the Electricity Sector page. This is multiplied by the new off-grid capacity for green hydrogen demand. Policy and BAU-scenario costs are then compared to find the change in costs.

Non-Fuel Operational Expenditures

Non-fuel expenditures to run hydrogen supply operations (e.g. labor, maintenance, replacement parts, etc.) is calculated by first increasing the total hydrogen production by the share of excess capacity (since this capacity also needs to be maintained), and then multiplying by a variable that indicates the amount spent on non-fuel operational expenses per unit annual hydrogen production capacity.

The difference between the BAU and Policy case versions of this variable gives us the policy-driven change in operational expenditures.

We similarly find the changes in fixed and variable OM costs for off-grid capacity deployed to meet the demand of green hydrogen electrolyzers. These are calculated using costs per unit capacity calculated in the Electricity Sector and multiplied by the total generation or capacity deployed for green hydrogen.

The difference between the BAU and Policy case versions of these variables gives us the policy-driven change in operational expenditures for green hydrogen electricity.

Fuel Expenditures

In order to calculate the change in fuel (including electricity) expenditures, we first multiply fuel use by the cost per unit fuel to find the total amount spent on fuels by the hydrogen supply sector.

We multiply the quantity of fuel used by the fuel tax amount per unit fuel sold to find the total taxes paid on hydrogen sector fuels.

We take the difference between the BAU and Policy cases to find the change in amount spent on fuels, and the change in taxes resulting from the sale of hydrogen sector fuels. Finally, we subtract the change in taxes from the change in amount spent to find the cash flow impacts for the fuel-supplying entities.

Allocating Changes in Expenditures

Hydrogen suppliers are part of "other energy suppliers," one of the nine "cash flow entities" tracked in the EPS (separately from the 42 ISIC codes used in the input-output model and for revenue allocation in each sector). Therefore, allocating expenditures is very straightforward. All hydrogen supply expenditures, whether for fuel, capital, or operational expenditures, are allocated to the "other energy suppliers" cash flow entity. (Expenditures to buy hydrogen fuel are included in the sectors that demand hydrogen, such as industry or transportation, not in the hydrogen supply sector.) Only subsidies for CCS, green hydrogen electricity generation, and green hydrogen electricity capacity construction are allocated to another entity, in this case the government.

We also calculate the change in expenditures per unit of hydrogen produced. This value is used on the Fuels sheet to adjust the BAU price of hydrogen to reflect policy-driven changes in the cost to produce hydrogen. This may include price reductions (such as if endogenous learning drives down hydrogen production cost) or, more commonly, price increases (if the pathway shifting lever shifts production from a lower-cost pathway to a higher-cost pathway). (This feedback loop can be disabled using the "Toggle Whether Policies Affect Energy Prices" policy lever on the "Policy Control Center" sheet.)

Allocating Changes in Revenues

Revenues going to non-energy industries are allocated to some of the 42 ISIC codes tracked in the model. (For more detail on ISIC codes, see the documentation page on the input-output model.) The shares for labor and for government (i.e. taxes) are separated out later, on the Cross-Sector Totals sheet. Changes in capital expenditures are allocated based on the input data provided in hydgn/SoHPCCbRIC Share of Hydrogen Production Capital Costs by Recipient ISIC Code and various expenditures for electricity producers are allocated based on other input data (see sceenshot below). Changes in non-fuel operational expenditures are allocated to ISIC 31T33 (Other manufacturing; repair and installation of machinery and equipment). CCS transportation and storage revenue is allocated to ISIC 352T353 (energy pipelines and gas processing).

Remaining changes in revenues are allocated to the correct cash flow entities. Taxes on fuels go to the government. Changes in after-tax revenue for each fuel-supplying industry are assigned to the correct energy supplier cash flow entity. The change in non-energy industry revenue by ISIC code is assigned to the "non-energy industries" cash flow entity, as this entity is always kept in sync with the corresponding values broken out by ISIC code.

The changes in expenditures and revenues are then summed with those from other sectors on the Cross-Sector Totals sheet.

---

This page was last updated in version 4.0.4.
